Used XCMG XR150 Rotary Drilling Rig-Cost-Effective Solution for Deep Foundation Projects

Product Information

Basic Info.	Details
Model NO.	XR150D
Condition	Used
Drill Hole Diameter	>300mm
Drill Hole Depth	50-70m
Bit Type	Diamond Bit
Drilling Way	Rotary
Type	Crawler
Max.Torque Output	150 kN.M
Max.Drilling Dia.	1500 mm
Max.Drilling Depth	56 M
Max.Push Force	120 kN
Max.Pull Force	160 kN
Operating Weight (Approx)	49000kg
Working Hours	3000~5000h
Transport Package	Roll-on-Roll-off Ship
Specification	XR150D
Trademark	XR
Origin	China
Production Capacity	20
Packaging & Delivery – Package Size	1361.00cm * 296.00cm * 304.00cm
Packaging & Delivery – Package Gross Weight	49500.000kg

“Note: The above are standard specifications for the XR150 model. Actual parameters may vary slightly depending on the year of manufacture, configuration, and modifications. Please confirm based on the actual machine.”

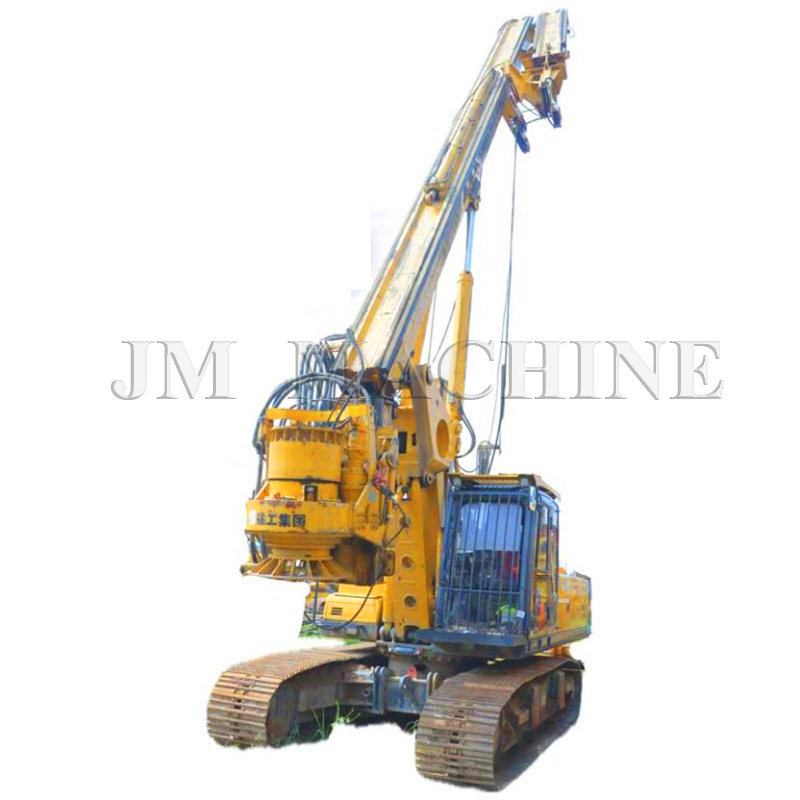

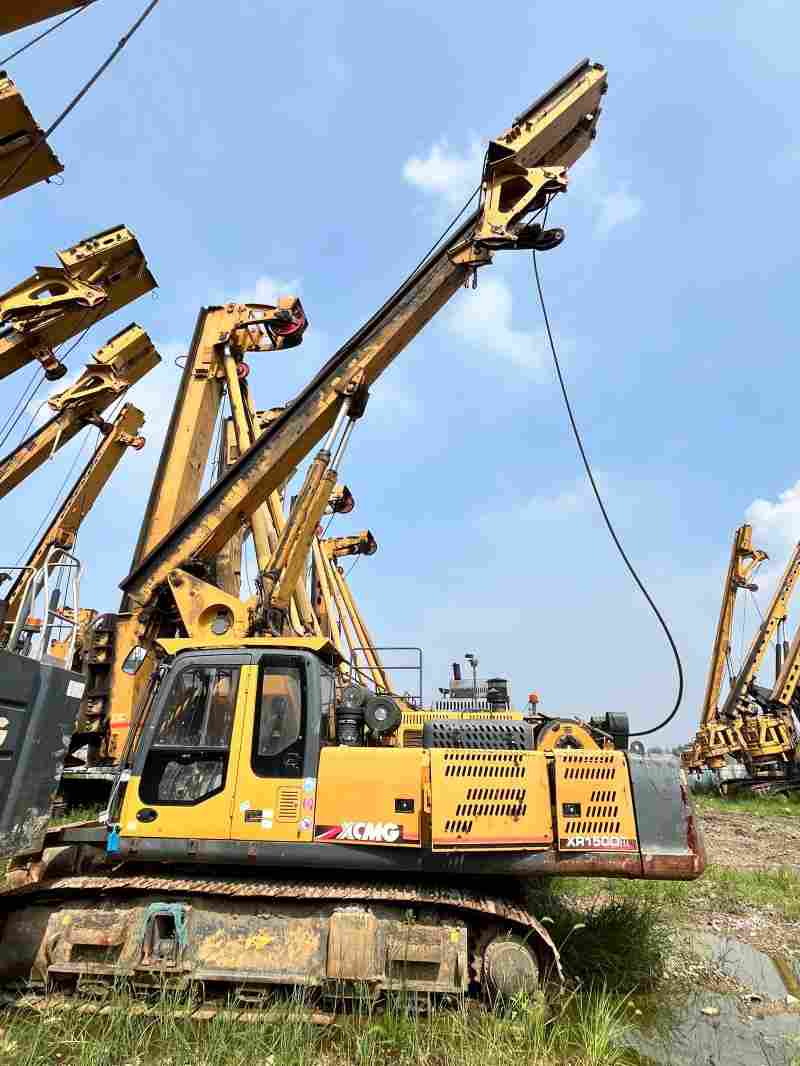

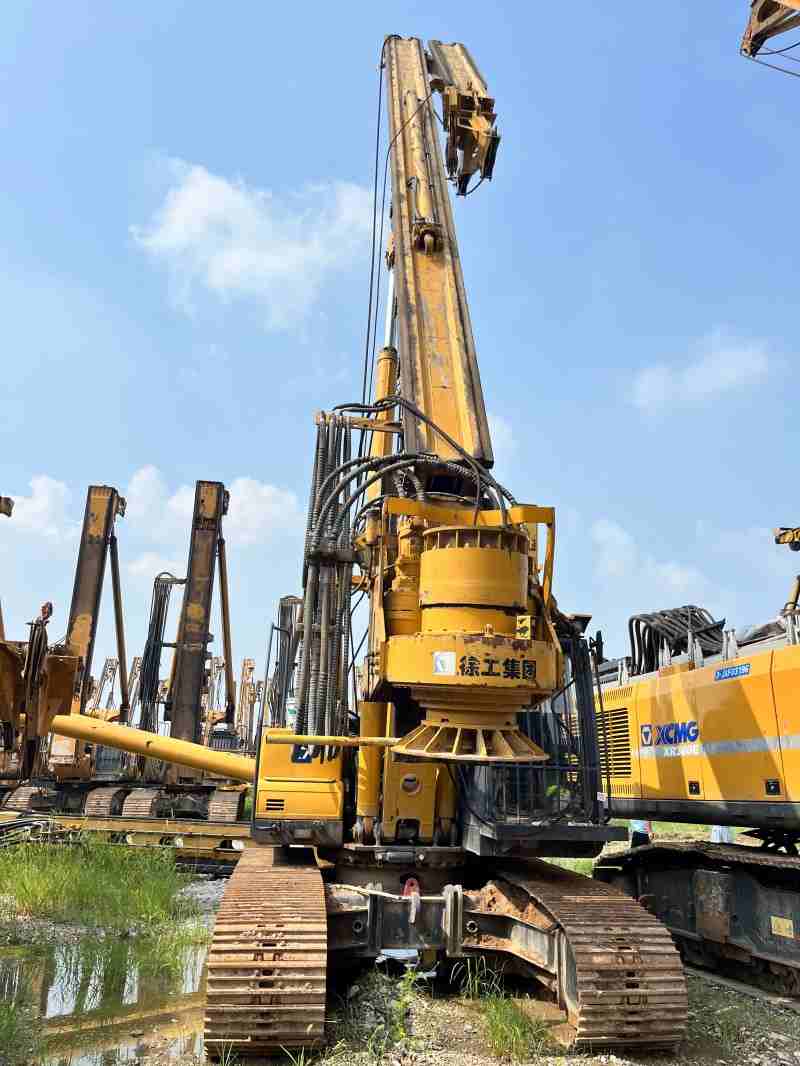

XR150D Small Rotary Drilling Rig

This cost-effective power unit stands out for its exceptional drilling capabilities, boasting a maximum drilling depth of 56 meters and a peak torque output of 150 kN·m—striking an ideal balance between performance and value.

Performance Characteristics

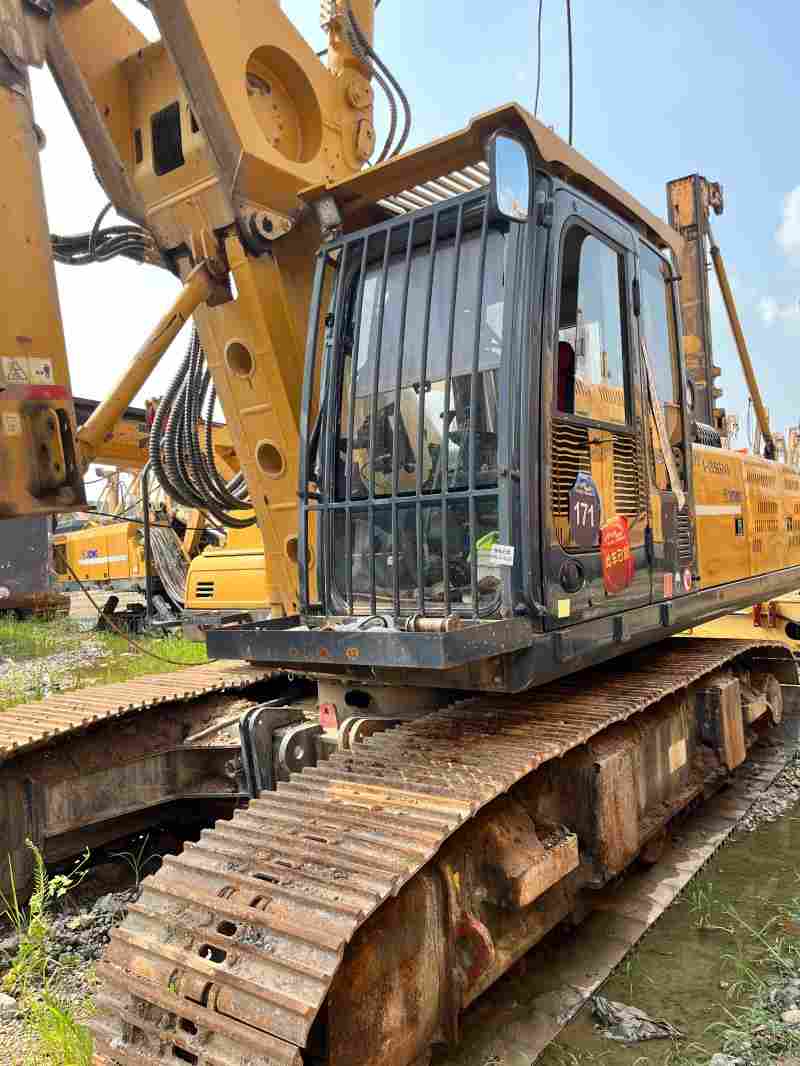

Equipped with a dedicated hydraulically retractable crawler chassis and a large-diameter slewing bearing, it delivers superior operational stability while ensuring convenient transportation between job sites.

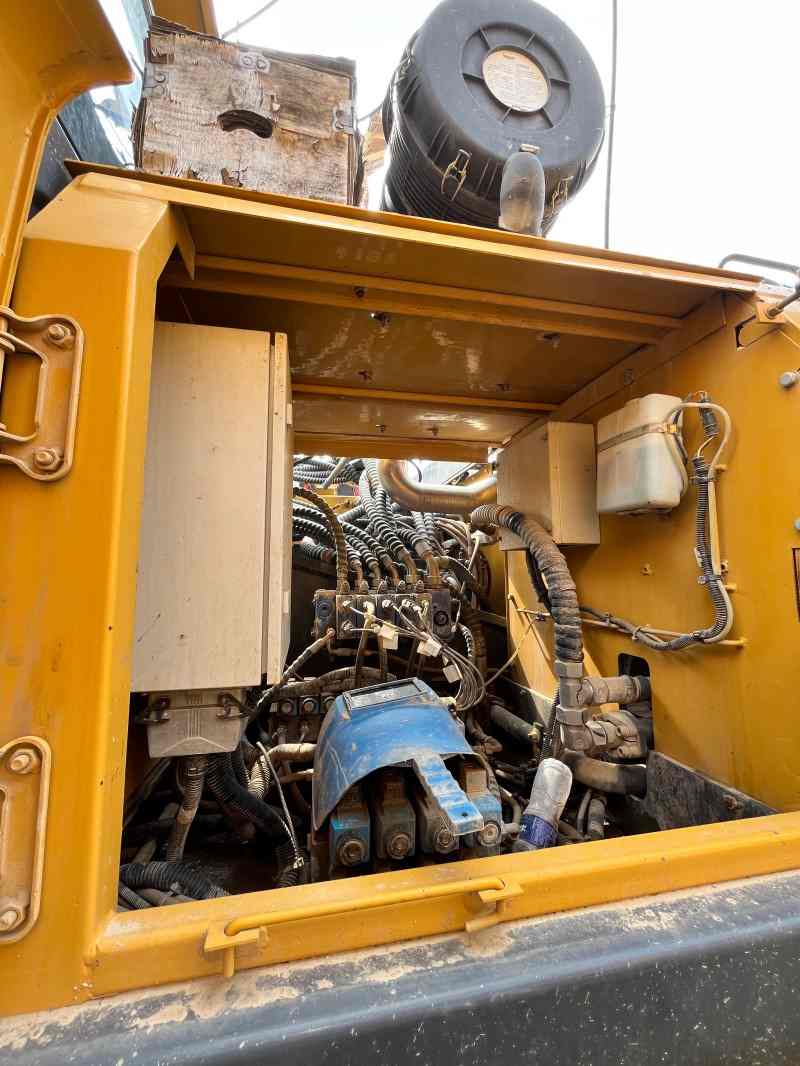

Powered by a Cummins electronically controlled turbocharged engine, it not only provides robust power output but also complies with the Euro III emission standard, aligning with environmental requirements.

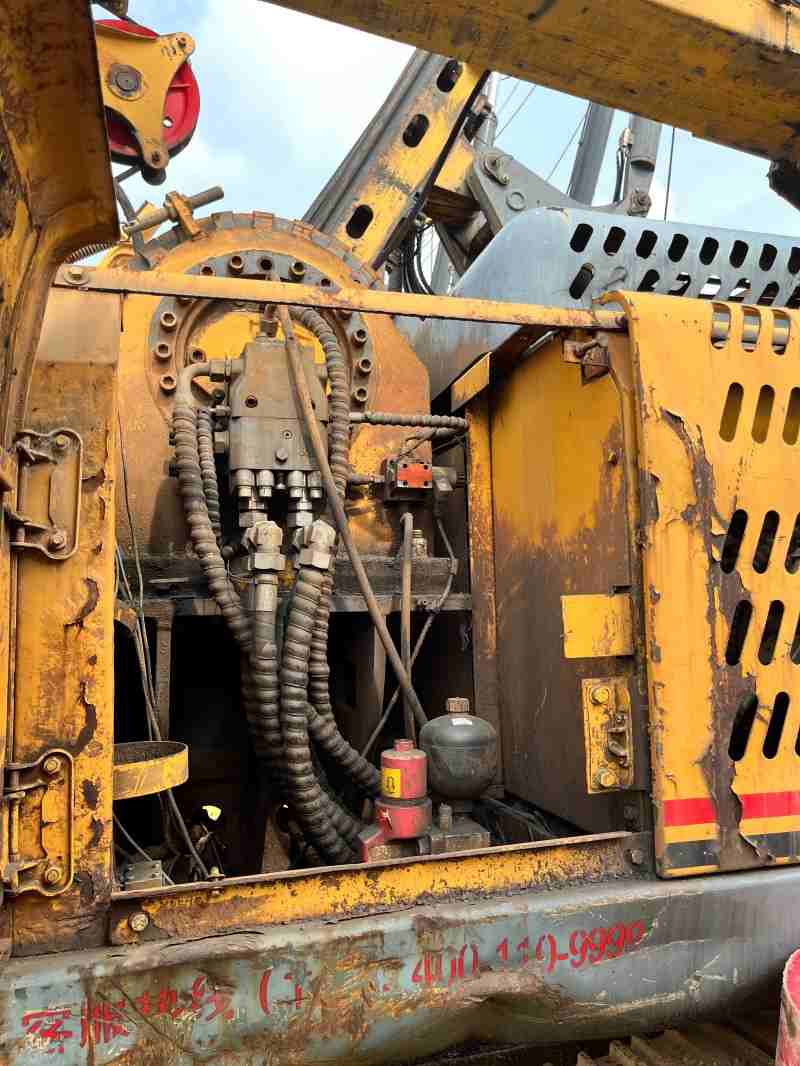

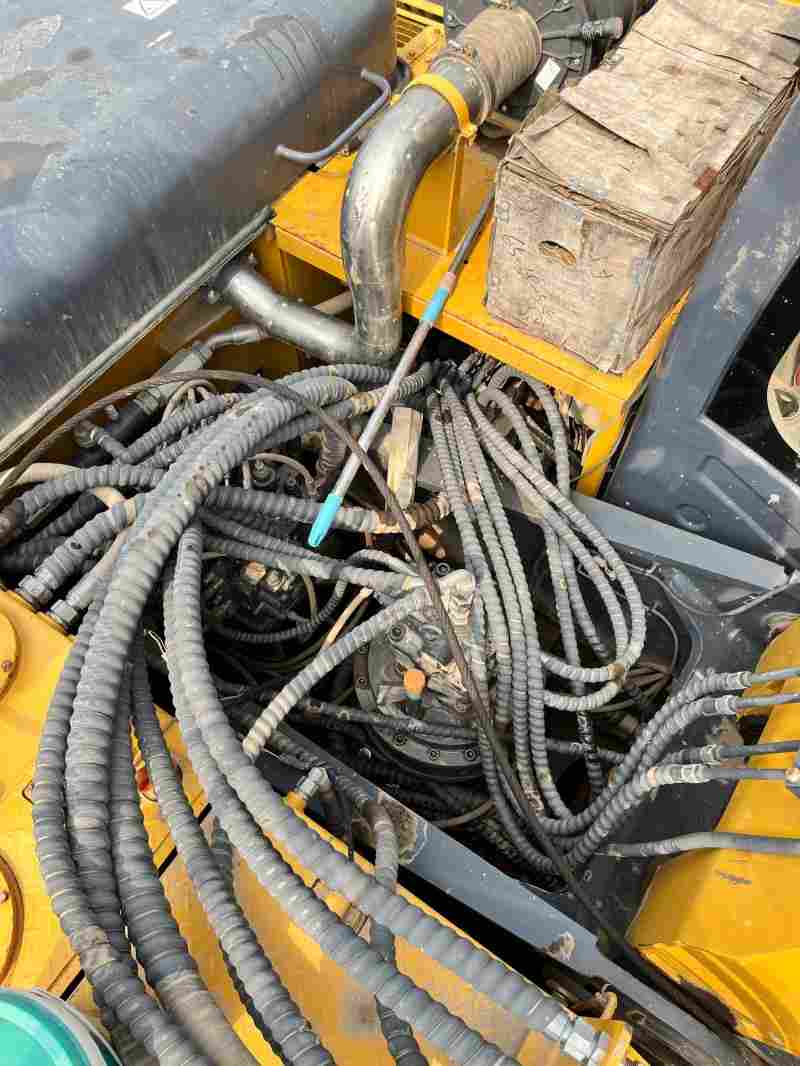

Its hydraulic system integrates threshold power control and negative flow control technologies, achieving both high operational efficiency and enhanced energy savings—reducing unnecessary power consumption.
Adopting a single-rope winding design, it effectively mitigates wire rope wear, significantly extending the rope’s service life. Additionally, the main winch is fitted with a drilling depth detection device, ensuring more accurate depth measurement thanks to the single-rope configuration.
The entire machine is designed to meet the requirements of the CE directive, with comprehensive safety safeguards in place to make on-site construction safer and more secure.

We meticulously select each machine based on optimal cost-performance ratios, then subject them to a thorough, all-round refurbishment process, including:

Comprehensive mechanical maintenance to restore core functionality to peak condition
Replacement and upgrading of key components to ensure long-term reliability
Standardized performance verification to guarantee consistent, meets-spec operation

Though it carries a well-proven service history, this mature model still maintains unparalleled operational dependability. Its verified durability directly translates to lower ownership costs and a faster return on investment—making it your most reliable solution for foundation construction needs.

Max.Torque Output	Max.Drilling Dia.	Max.Drilling Depth	Engine Power	Max.Push Force	Max.Pull Force	Operating Weight (Approx)	Working Hours
150 kN.m	1500 mm	56 m	150 kW	120 kN	160 kN	49000 kg	3000~5000 h

JM Rotary Drilling Rig

JM Kelly Bar

Advantages of the JM Kelly bar

JM adopts advanced international key-type distribution technology, which integrates the internal and external keys to enhance the reliability and performance of the drill pipe.
All the drill pipes are made of high-strength alloy quality pipes to ensure the dimensional accuracy of the drill pipes, as well as excellent mechanical properties and welding adaptability. Special heat treatment for secondary strengthening is carried out on special steel pipes (such as core pipe steel, etc.), significantly improving the torsional bearing capacity of the drill pipe. All the key strips of JM drill pipes are made of high-strength, fully high-quality alloy structural steel, and undergo comprehensive strengthening treatment. The inner key adopts an integral arc-shaped plate structure, significantly improving the wear resistance and lifespan of the inner and outer key strips, thereby reducing the failure rate and maintenance of the drill pipe. We also make reasonable pipe system configurations to maximize the thickness of the drill pipe key strips and the wall thickness of the steel pipe, enhancing the torque transmission and pressure drilling capabilities of the drill pipe, and reducing the occurrence of problems such as stuck rods, bent rods, and rolled keys.

The unique double retaining ring structure increases the guiding length during the full extension of the drill pipe, solving the problem of easy deformation at the pipe end, improving the coaxiality and resistance to bending during full extension, and reducing the probability of inclined holes during pressure drilling. We use professional drill pipe technologies for deep holes, hard rock, and multi-sand pile holes, along with optimized construction plans and a strong construction technical team, eliminating difficulties encountered in complex stratum construction.
JM drill pipes are the preferred choice for improving drilling efficiency and achieving maximum benefits!

Spare Parts

Xuzhou Jiuman Machinery Technology Co., Ltd.

Xuzhou jiuman Machinery Technology Co., Ltd., established in 2016 and located in Xuzhou, the famous hometown of construction machinery, has independent import and export rights. It is a stable and gradually developing international trade import and export company. The company mainly serves the import and export business of all products of Xuzhou Jiujie Machinery Technology Co., Ltd.
The company relies on one country’s “one belt, one road” development strategy, and its products are exported to Southeast Asian countries, African countries, Middle East Arabia countries and Russia. Won the trust of customers at home and abroad.
We adhere to the business philosophy of “integrity creates brand and quality casts brilliance”, pay attention to the international and domestic market and pursue excellence. We sincerely look forward to cooperating with you and warmly welcome your presence to create a better future.
Jiuman Machinery possesses complete sets of production equipment and process facilities, a clean production environment, and an excellent management system. To ensure the professional quality of the products, the company implements lean production based on its production management regulations. From the procurement of raw materials to the final delivery of finished products, strict control is exercised over the entire process, and each aspect of product manufacturing is meticulously monitored to guarantee excellent product quality.

Through technological innovation and lean management, Jiuman has successfully addressed the industry-wide challenges of high energy consumption and low output, providing customers with efficient and reliable solutions. This case exemplifies the immense potential of digital transformation in traditional manufacturing and offers valuable experience for industry upgrading.

Over the years, the company has collaborated with numerous domestic and international machinery manufacturers, including Bao E, Xugong Group, Zoomlion, Sanhe Intelligent, and CMV, contributing significantly to infrastructure projects both in China and around the world.

The R&D technology of Kelly Bars, Rotary Drilling Rigs and Excavators has passed international certifications , strictly following industry technical specifications, ensuring that the equipment meets international standards in terms of safety performance, environmental indicators and operation efficiency, and satisfying the technical requirements of customers in different regions around the world.

Fully automatic laser cutting machine

The fully automatic laser cutting machine is a precision processing equipment for large gantry milling machines. It can ensure that the machine tool has excellent seismic resistance, high rigidity and stability. It adopts an integral steel welding structure. After annealing to eliminate internal stress and secondary vibration aging treatment for fine processing, it is made.

This improves the stability of the machine tool. It is driven by dual motors simultaneously on both sides, with high torque servo motors, high-precision linear guides, and the bed adopts a unique segmented assembly mechanism. The material platform track is assembled in a split manner and integrated as a whole. This ensures that the service life of the machine tool is not affected by mechanical gravity and avoids deformation of the machine tool, meeting the requirements of visual sensory design. Facing different production task demands, it plays an important role in the long-term stability of the cutting of thick plates.

Intelligent welding machine operator

This intelligent robot workstation adopts various specifications of arc welding robot arms provided by FANUC, which meets the demands of the mechanical industry. At the same time, we provide a complete welding system to offer customers a comprehensive solution.

It can stabilize and improve the welding quality, ensuring its uniformity; increase productivity, allowing for continuous production for 24 hours a day; improve the working conditions for workers, enabling them to work in harmful environments for a long time; reduce the requirements for workers’ operational skills; shorten the cycle for product modification and replacement, and reduce the corresponding investment in equipment; achieve automated welding for batch products; save floor space.

Kelly bar welding special machine

The Kelly bar welding special machine can efficiently complete two-way Kelly bar welding, significantly improving welding quality and product durability, reducing the need for manual intervention, and accelerating the production speed of products. It also has the same production efficiency for customer customization, meeting the needs of various tasks.
